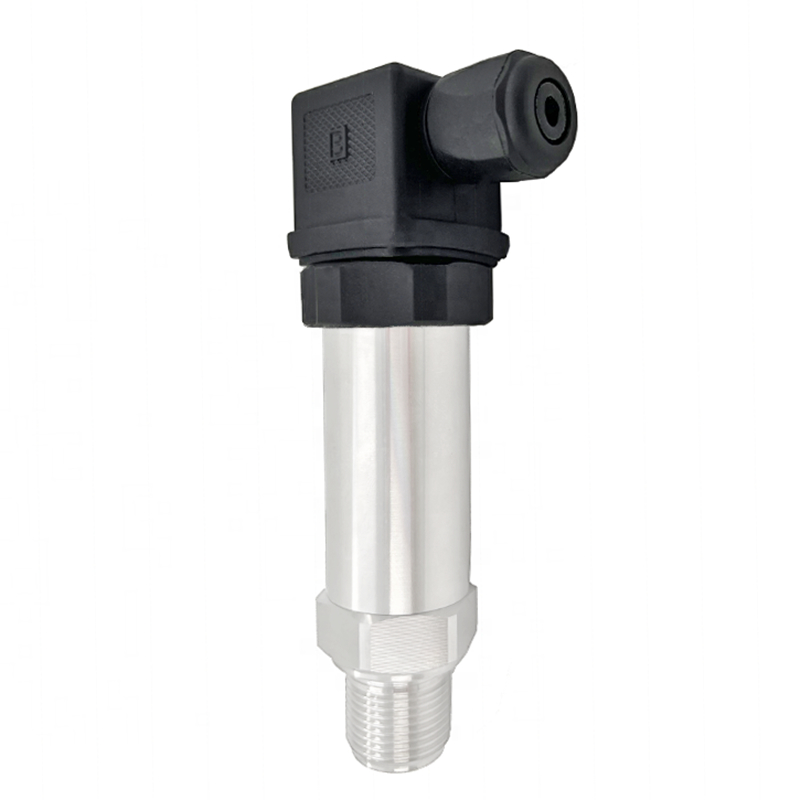

High Precision Digital Pressure Transmitter 0.1% Accuracy 4-20mA Output

製品詳細:

起源の場所:	中国
ブランド名:	Ruijia
証明:	CE/ROHS
モデル番号:	RJ

詳細情報

起源の場所:

中国

ブランド名:

Ruijia

証明:

CE/ROHS

モデル番号:

製品名:

圧力送信機

測定範囲:

-1bar~0~1000bar (カスタマイズサポート)

出力信号:

-20mA, 0-5V, 1-5V, 0.5-4.5V, その他

電源:

5VDC、12-36V DC

精度:

0.25%, 0.1% FS

動作温度:

-10 ~ 70 °C

ハイライト:

High Light

ハイライト:

high precision digital pressure transmitter

4-20mA output pressure sensor

0.1% accuracy pressure transmitter

取引情報

最小注文数量:

価格:

$17

パッケージの詳細:

カートンか木枠

受渡し時間:

5~8 営業日

支払条件:

信用状、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力:

2000個/月

製品の説明

High Precision Digital Circuit Pressure Transmitter for Water Treatment and Automation Industry at Low Price

Model	RJ
Measuring range	-1bar~0~1000bar(Support customization)
Maximum overload	1.5 times of rated pressure
Pressure form	gauge pressure, absolute pressure,negative pressure
Precision grade	0.2% 0.1%
output signal	4-20mA, 0-5V, 0-10V, RS485
Power supply voltage	12 to 36VDC
Load resistance	≤500Ω
Measuring medium	Liquid, gas, steam
Long-term stability	±0.2% F.S/year
Relative humidity of the environment	0 to 90%
Operating temperature	-10～70℃
Pressure interface material	All stainless steel integrated
Process Connection	1/4NPT,1/2NPT,G1/2",G1/4(Support customization)
Diaphragm material	316L, tantalum, HC or user-defined

High Precision Digital Pressure Transmitter 0.1% Accuracy 4-20mA Output 0

Applicable

High Precision Digital Pressure Transmitter 0.1% Accuracy 4-20mA Output 1

High Precision Digital Pressure Transmitter 0.1% Accuracy 4-20mA Output 2

Product packaging

The packaging is meticulously crafted with thickened multi-layer corrugated boxesand biodegradable pearl cotton for double protection. The corrugated boxes arethick and resistant to compression, while the pearl cotton is flexible and shock-absorbing, moisture-proof, shock-proof, and anti-static.lt emphasizes thecombination of environmental protection and quality, fully showcasing a luxurious style.

High Precision Digital Pressure Transmitter 0.1% Accuracy 4-20mA Output 3
