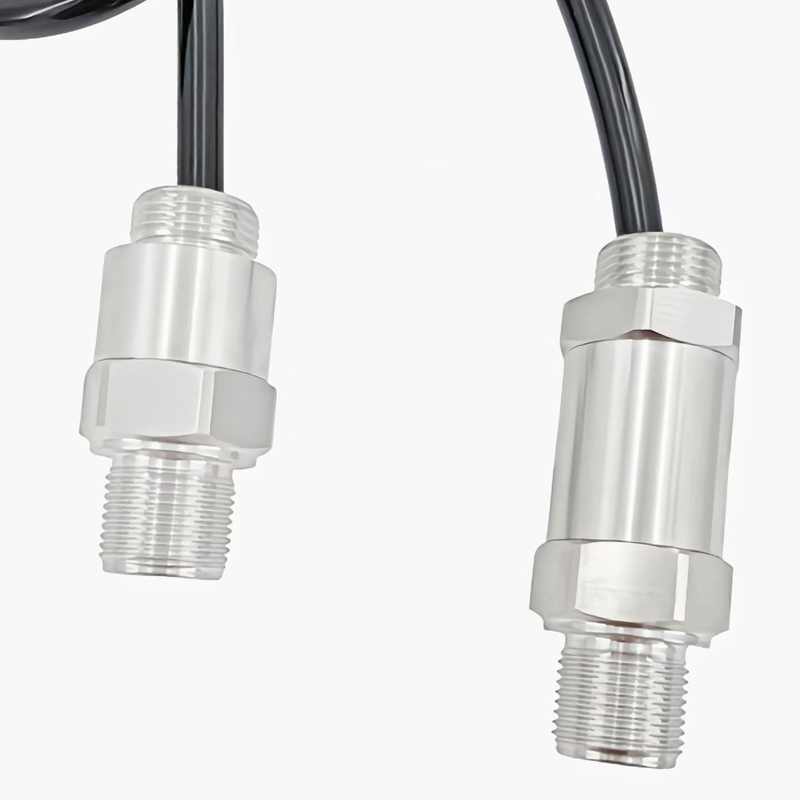

Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output

製品詳細:

起源の場所:	中国
ブランド名:	RJ
証明:	CE/ROSRE
モデル番号:	RJ

詳細情報

起源の場所:

中国

ブランド名:

証明:

CE/ROSRE

モデル番号:

製品名:

デュアルヘッドねじ込み圧力センサー

測定範囲:

-1bar~0~1000bar (カスタマイズサポート)

出力信号:

4〜20mA,0〜5V,1〜5V,0.5〜4.5V,その他

電源:

5V DC,12~36V DC

精度:

0.25%, 0.1% FS

測定中間:

液体、ガス、蒸気、オイル、空気

ハイライト:

High Light

ハイライト:

dual-head threaded pressure sensor

high-pressure sensor 4-20mA output

pressure sensor 1bar to 1000bar

取引情報

最小注文数量:

価格:

$12

パッケージの詳細:

カートンか木枠

受渡し時間:

5~8 営業日

支払条件:

信用状、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力:

2000PC/Month

製品の説明

High Cost-Performance DC Double-Head Threaded Pressure Transmitter for Metallurgical and Ceramic Industries

Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output 0

Model	RJ
Pressure range	-1bar~0~1000bar(Support customization)
Pressure form	Gauge pressure,negative pressure,Absolute pressure
Maximum overload	1.5 times of rated pressure
Precision grade	0.2% 0.1%
output signal	4-20mA, 0-5V, 0-10V, RS485
Power supply voltage	12 to 36VDC
Load resistance	≤500Ω
Measuring medium	Liquid, gas, steam
Long-term stability	±0.2% F.S/year
Relative humidity of the environment	0 to 90%
Operating temperature	-10～70℃
Pressure interface material	All stainless steel integrated
Process Connection	1/4NPT,1/2NPT,G1/2",G1/4(Support customization)
Diaphragm material	316L, tantalum, HC or user-defined

Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output 1

Applicable

Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output 2

Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output 3

Product packaging

The packaging is meticulously crafted with thickened multi-layer corrugated boxesand biodegradable pearl cotton for double protection. The corrugated boxes arethick and resistant to compression, while the pearl cotton is flexible and shock-absorbing, moisture-proof, shock-proof, and anti-static.lt emphasizes thecombination of environmental protection and quality, fully showcasing a luxurious style.

Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output 4
