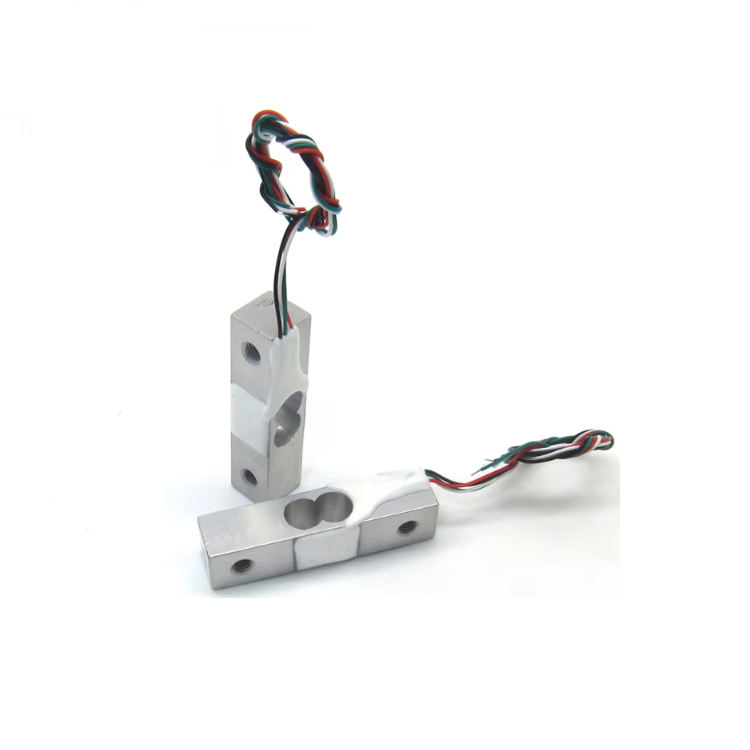

Single Point Load Cell Sensor 1-50KG Capacity Analog Output

製品詳細:

起源の場所:	中国
ブランド名:	RJ
証明:	CE/ROSE
モデル番号:	RJ

詳細情報

起源の場所:

中国

ブランド名:

証明:

CE/ROSE

モデル番号:

出力:

アナログセンサー

容量:

1kg-50kg

ケーブル:

0.8×220mm

入力インペデンス:

1000±50 Ω

精度クラス:

0.05%

広範囲の間違い:

0.05 %F.S

ハイライト:

High Light

ハイライト:

Single point load cell 1-50KG

Analog output load cell sensor

50KG capacity load cell

取引情報

最小注文数量:

価格:

$3-10

パッケージの詳細:

カートンか木枠

受渡し時間:

5~8 営業日

支払条件:

L/C,D/A,D/P,T/T,ウェスタン・ユニオン

供給の能力:

2000PC/Month

製品の説明

Body Scale Miniature Weight Sensor Single Point Load Cell 2 Kg 5 Kg 10 Kg 15 Kg 20 Kg 50 Kg

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 0

Parameters

Capacity	1kg-50kg
Rated Output	1.0±0.2mV/V
Comprehensive error	0.05 %F.S
Non-linearity	0.05%F.S
Hysteresis	0.05%F.S
Repeatability	0.05%F.S
Creep	0.05 [(3 min)% F.S.]
Zero output	-0.15~+0.05 m V/V
Temp. effect on zero	0.3 (%F.S/10℃)
Temp. effect on span	≤0.15 (%F.S/10℃)
Input impedance	1000±50 Ω
Output impedance	1000±50 Ω
Insulation resistance	≥2000 MΩ
Operating compensated range	-10~+40
Recommended excitation voltage	3-10 VDC
Safe overload	120%F.S
Ultimate Overload	150%F.S
Cable	Φ0.8 x 220mm
Connection	Excitation: Red+, Black- Signal: Green+, White-

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 2

Inatallation

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 3

Packing & Transport

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 4

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
