| 起源の場所: | 中国 |
| ブランド名: | RJ |
| 証明: | CE/ROSE |
| モデル番号: | RJ |

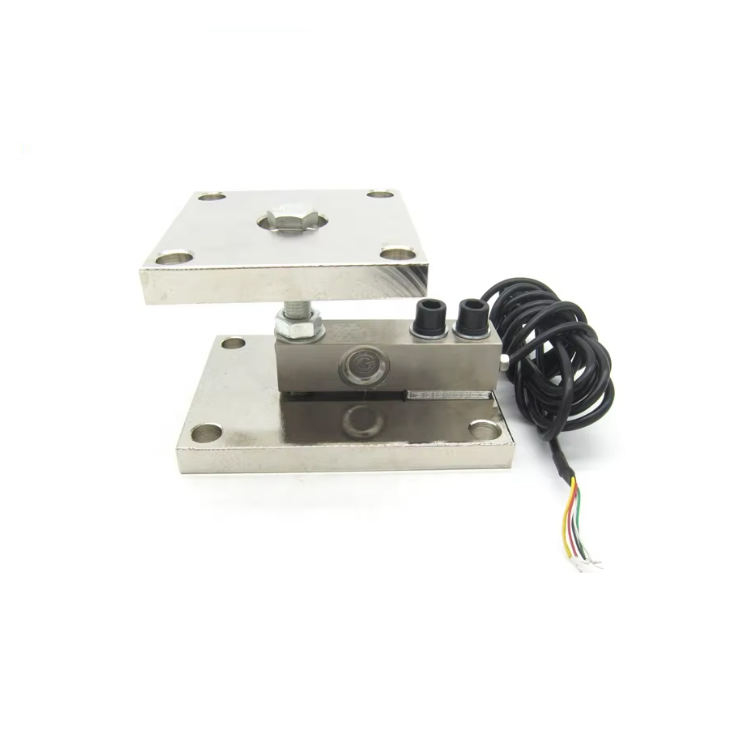

Features:
Capacity range: 100kg, 200kg, 300kg, 500kg, 1ton, 2ton, 3ton
Alloy steel loadcell, Welded-seal, IP67 , oil proof, waterproof and anti-corrosion.
Single shear beam, easy installation.
High accuracy and low profile.
Apply to: Tank scale, silo, mixer weighing system
Parameters:
| Application | Tank scale, silo, mixer weighing system |
| Model | RJ |
| Capacity | 100kg, 200kg, 300kg, 500kg, 1ton, 2ton, 3ton |
| rated output | 2.0±0.004mV/V |
| Accuracy class | C2 C3 |
| maximum number of verification intervals | 2000 Nmax 3000 Nmax |
| Minimum loadcell cerification intervals | Emax/5000Vmin Emax7500 Vmin |
| Combined error | ≤±0.030 % RO ≤±0.020 % RO |
| Creep | 0.02%RO/30min |
| Temp. effect on sensitivity | 0.0016 %RO/℃ 0.0012 %RO/℃ |
| Temp.effect on zero | 0.003%RO/℃ 0.002%RO/℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 365±10ohm |
| Output resistance | 350±3 ohm |
| insulation resistance | 5000 MΩ(50V) |
| Recommended excitation voltage | 5-12V |
| Compensated temperature range | -10-+40℃ |
| operating temperature range | -35-+80 ℃ |
| safe overload | 120 %RO |
| Ultimate overload | 150%RO |
| loadcell material | alloy steel |
| Connecting cable | Φ5.7x2m |
| Method of connecting wire | Red- input+, black- Input-. Green- Output+, White- output - |
