Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel

製品詳細:

起源の場所:	中国
ブランド名:	RJ
証明:	CE/ROSE
モデル番号:	RJ

詳細情報

起源の場所:

中国

ブランド名:

証明:

CE/ROSE

モデル番号:

記述:

測量センサーモジュール

容量:

5-1000N,0.5トン~100トン

入力抵抗:

385±15オーム 765±15オーム

刺激電圧:

10VDC

作動の臨時雇用者。範囲:

-20~+60℃

防水品種:

IP68

ハイライト:

High Light

ハイライト:

30 ton crane scale load cell

IP68 waterproof load cell sensor

alloy steel load cell sensor

取引情報

最小注文数量:

価格:

$50-150

パッケージの詳細:

カートンか木枠

受渡し時間:

5~8 営業日

支払条件:

L/C,D/A,D/P,T/T,ウェスタン・ユニオン

供給の能力:

2000PC/Month

製品の説明

Crane Scale load cell 5 ton 10 ton 20 ton 30 ton

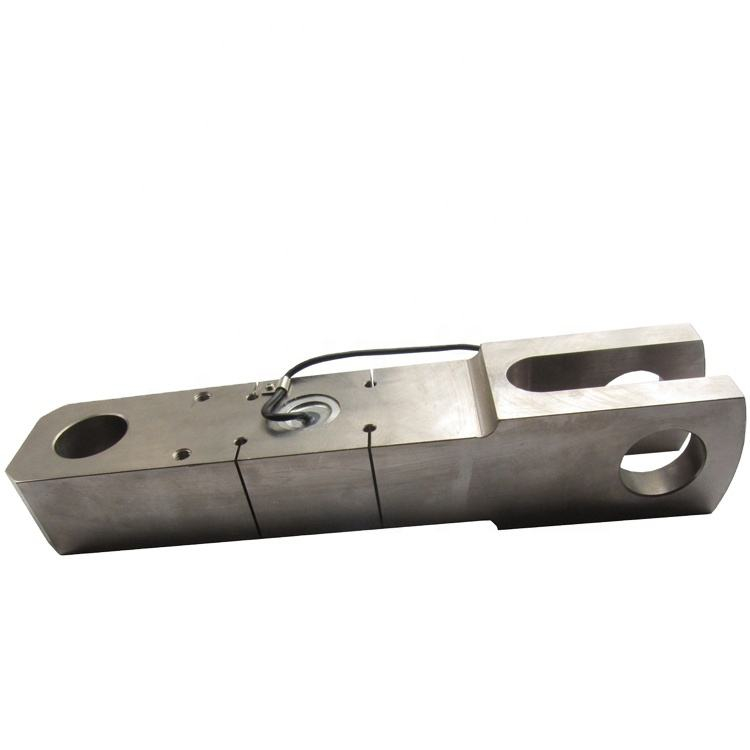

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 0

Capacity: 3Ton to 30Ton
Accuracy: C2
Application: Crane scale
Material: Alloy steel

Feature: Alloy steel structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments

Parameter:

Application	Crane scale
Model	RJ
Capacity	3T, 5T, 10ton, 20ton, 30ton
rated output	2.0±0.02mV/V
Accuracy class	C2
maximum number of verification intervals	2000Nmax
Minimum loadcell cerification intervals	Emax/5000 Vmin
Combined error	≤±0.030 % RO
Creep	0.02%RO/30min
Temp. effect on sensitivity	0.0016 %RO/℃
Temp.effect on zero	0.0026%RO/℃
Zero balance	±1.0 %RO
Input resistance	380±5 ohm
Output resistance	350±3 ohm
insulation resistance	5000 MΩ(50V)
Recommended excitation voltage	5-15V
Compensated temperature range	-10-+40℃
operating temperature range	-35-+80 ℃
safe overload	150 %RO
Ultimate overload	200%RO
loadcell material	Alloy steel
Connecting cable	Φ5.7x0.5m
Method of connecting wire	Red- input+, black- Input-. Green- Output+, White- output -

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 1

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 2

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 3

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 4

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 5

Packing & Transport

Crane Scale Load Cell 5-30 Ton IP68 Waterproof Alloy Steel 6

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
