| 起源の場所: | 中国 |
| ブランド名: | RJ |
| 証明: | CE/ROSE |
| モデル番号: | RJ |

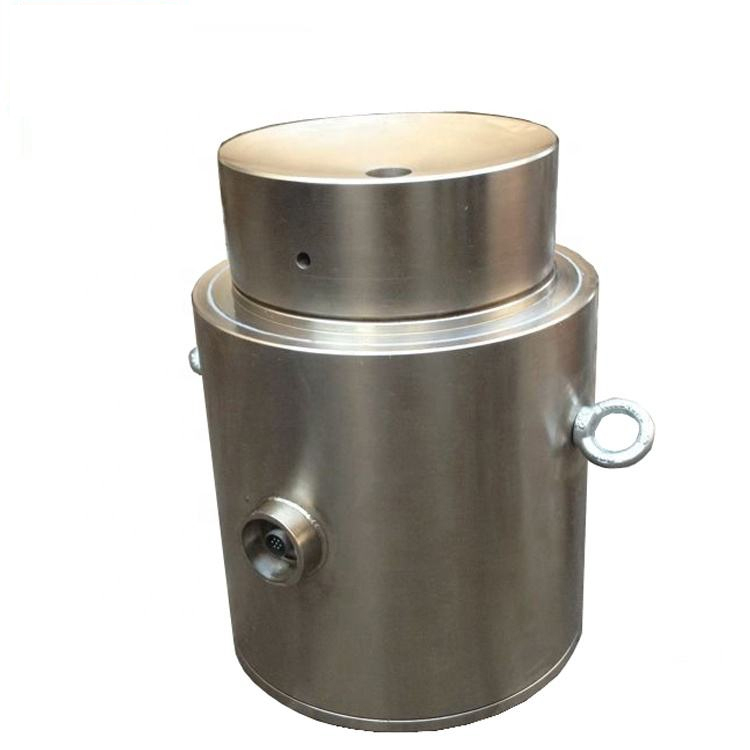

Features:
1, Material: Alloy steel with IP66/ IP67 waterproof.
2, Application: hydraulic jack,Truck and railway scales, tank and silo weighing and in heavy duty industrial scales.
3, Optional accessories: Indicator / display, junction box.
Parameters:
| Application | hydraulic jack |
| Model | RJ |
| Capacity | 10T, 20T, 30T, 40T, 60T, 70T, 100T, 200T, 300T, 500t, 700t, 1000t, 2000t, 3000t |
| rated output | 2.0±0.004mV/V |
| Accuracy class | C2 C3 |
| maximum number of verification intervals | 2000 Nmax 3000 Nmax |
| Minimum loadcell cerification intervals | Emax/5000Vmin Emax7500 Vmin |
| Combined error | ≤±0.030 % RO ≤±0.020 % RO |
| Creep | 0.026 %RO/30min 0.018 %RO/30min |
| Temp. effect on sensitivity | 0.0015 %RO/℃ |
| Temp.effect on zero | 0.0026%RO/℃ 0.0018%RO/℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 670±10 ohm 1050±10 ohm |
| Output resistance | 605±5 ohm 1000±5 ohm |
| insulation resistance | 5000 MΩ(50V) |
| Recommended excitation voltage | 10-18V |
| Compensated temperature range | -10-+40℃ |
| operating temperature range | -35-+80 ℃ |
| safe overload | 150 %RO |
| Ultimate overload | 300%RO |
| loadcell material | Alloy steel stainless steel |
| Connecting cable | 10-30T Φ6.3x13m 40-300T Φ6.3x20m |
| Method of connecting wire | Red- input+, black- Input-. Green- Output+, White- output - |
