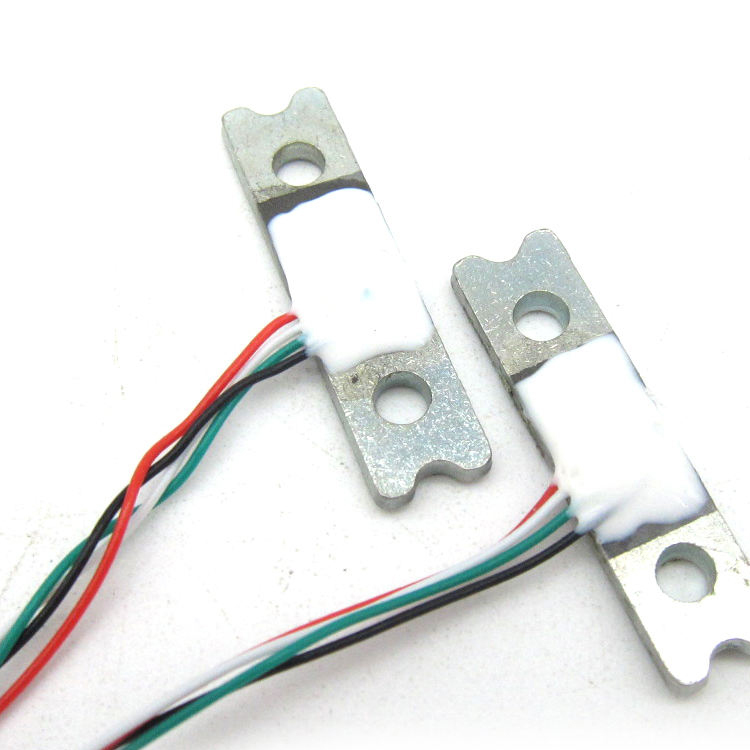

Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity

製品詳細:

起源の場所:	中国
ブランド名:	RJ
証明:	CE/ROSE
モデル番号:	RJ

詳細情報

起源の場所:

中国

ブランド名:

証明:

CE/ROSE

モデル番号:

容量:

10, 20, 30, 40, 50 KG

記述:

釣り計の負荷セル

繰り返し可能性:

0.1% F.S

材料:

アルミニウム

ヒステレシス:

00.2% F.S.

出力抵抗:

1000±10オーム

ハイライト:

High Light

ハイライト:

aluminum fishing scale load cell

50kg capacity load cell sensor

fishing scale sensor 10-50kg

取引情報

最小注文数量:

価格:

$2-5

パッケージの詳細:

カートンか木枠

受渡し時間:

5~8 営業日

支払条件:

L/C,D/A,D/P,T/T,ウェスタン・ユニオン

供給の能力:

2000PC/Month

製品の説明

Fishing Scales Small Size Flat Load Cell Weight Sensor 30kg 40kg 50Kg

Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity 0

Parameters

Application	finshing scale
Model	RJ
Capacity	10kg, 20kg, 30kg
Comprehensive Error	0.2
Output sensitivity	1.0±0.1mV/V
Nonlinearity	0.01% F.S.
Repeatability	0.1% F.S.
Hyteresis	0.2% F.S.
Creep	0.1 (3min) % F.S.
Zero balance	0.1 (1min) % F.S.
Temp.effect on zero	0.2 % F.S./10℃
Temp. effect on span	≤0.15 F.S./10℃
Zero output	±0.3 MV/V
Input resistance	1000±50 ohm
Output resistance	1000±50 ohm
insulation resistance	≥2000 MΩ
Recommended excitation voltage	5-10V
Compensated temperature range	-10-+50℃
Ultimate overload	150%RO
loadcell material	Aluminum alloy

Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity 1

Packing & Transport

Aluminum Fishing Scale Load Cell Sensor 10-50kg Capacity 2

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
