| 起源の場所: | 中国 |
| ブランド名: | RUIJIA |
| 証明: | CE |
| モデル番号: | RJ |
Features
Bending beam weight load cell 10,20,50,100,200,500kg is based on the strain gauge technology. The high-accuracy sensor is easy to install.The bending beam load cell offers particularly high protection such as IP68 waterproof. The weight sensor offers limitless possibilities for applications.
Applications
The cantilever beam design ensures reliable performance and durability, making it ideal for cross-border e-commerce platforms looking to offer quality weight transmitters to their customers. Whether used in industrial settings or commercial applications, this load cell provides accurate and consistent results for all weighing needs.

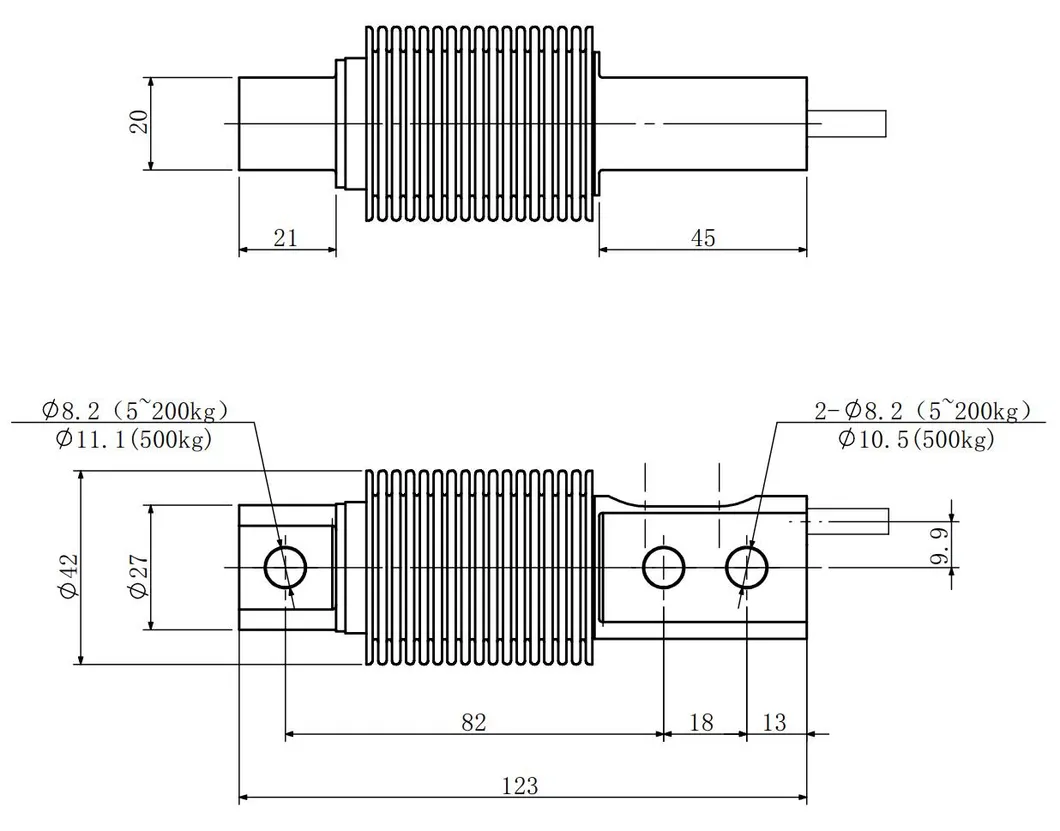

Mounting Dimension

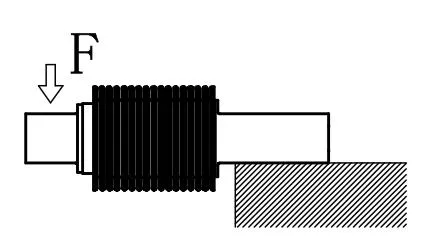

Load Direction

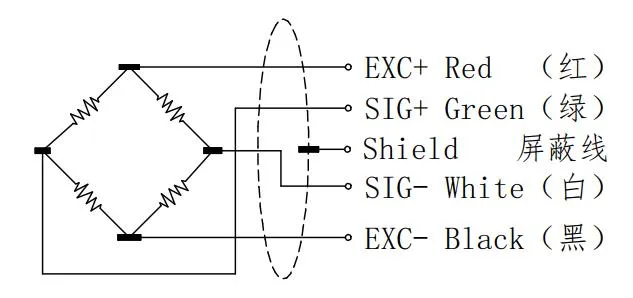

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 10,20,50,100,200,500kg |
| Accuracy class | C3 |
| Rated output | 2.0±0.05mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.018%F.S. |
| Hysteresis | 0.017%F.S. |
| Repeatability | 0.018%F.S. |
| Creep(30min) | 0.0166%F.S. |
| Temp.effect on output | 0.008%F.S./10ºC |
| Temp.effect on zero | 0.0125%F.S./10ºC |
| Input impedance | 390±5Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40ºC |
| Operation temp range | -30~70ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ5.4×1500mm |
| Material | Stainless Steel |
| IP Class | IP68 |
