| 起源の場所: | 中国 |
| ブランド名: | RUIJIA |
| 証明: | CE |
| モデル番号: | RJ |

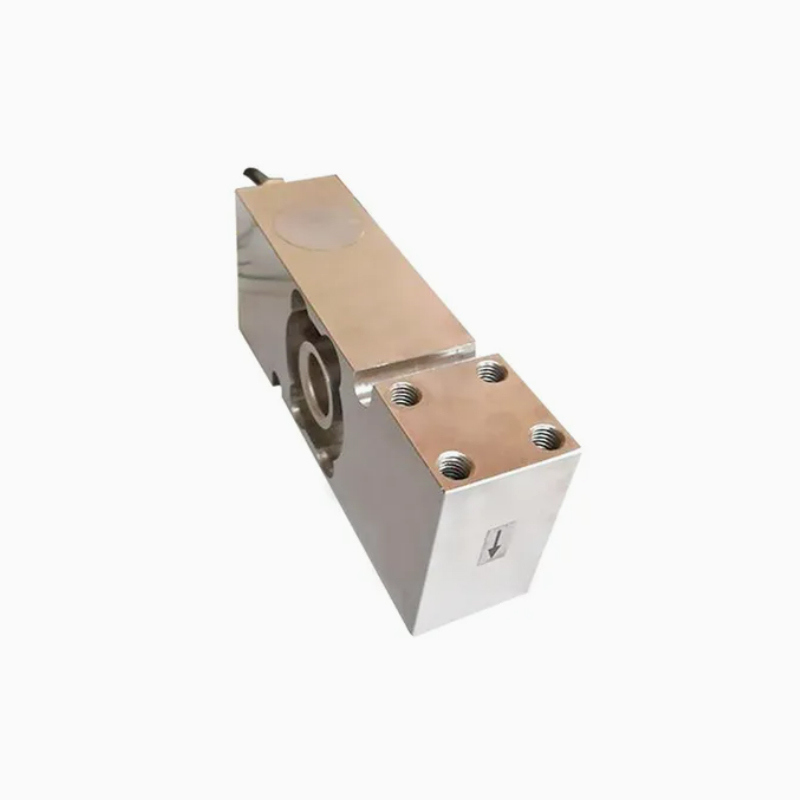

The Weighing load cell is a force sensor. Sensors are devices that convert the form of energy into readable electrical signals. In this case, the weighing load cell converts the force into voltage, which can be read by electrical equipment.
Weighing load cell, respectively are single point load cell, cantilever beam load cell, column load cell, S beam load cell, spoke load cell. Weighing load cell made of stainless steel or alloy steel material, German technology, high precision, anti-bias load ability, strong impact resistance; Easy to install, high level of protection. Applicable to electronic scale, counting scale, electronic balance, packaging scale, hopper scale, industrial weighing instrument, industrial weighing system and so on.
|
Specifications
|
Technique
|
Specifications
|
Technique
|
|
Capacity
|
100,200,300,500kg
|
Insulation
|
≥5000MΩ/100VDC
|
|
Rated output
|
2.0±1%mV/V
|
Recommended excitation
|
5~12V
|
|
Zero balance
|
±2%mV/V
|
Maximum excitation
|
15V
|
|
Non-linearity
|
≤0.017%F.S.
|
Compensated temp range
|
-10~60ºC
|
|
Hysteresis
|
≤0.017%F.S.
|
Operation temp range
|
-20~80ºC
|
|
Repeatability
|
≤0.017%F.S.
|
Safe overload
|
150%F.S.
|
|
Temp.effect on output
|
0.02%F.S./10ºC
|
Ultimate overload
|
200%F.S.
|
|
Temp.effect on zero
|
0.02%F.S./10ºC
|
Cable size
|
3m
|
|
Input impedance
|
381±4Ω
|
Material
|
Stainless Steel |
|
Output impedance
|
350±1Ω
|
|
