| 起源の場所: | 中国 |
| ブランド名: | RUIJIA |
| 証明: | CE |
| モデル番号: | RJ |

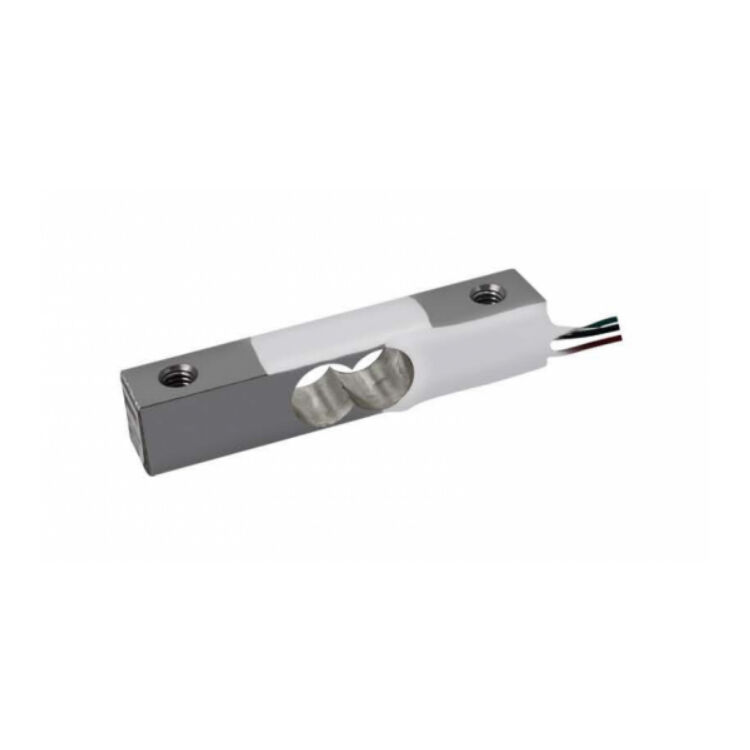

High Precision Bending Beam Load Cell (0.5-5kg)
The Aluminum alloy parallel load cell sealed with white glue, high precision weighing load cell for jewelry scale with multiple accuracy levels.
| Payment | 100% payment before shipment |
| Capacities | 0.5kg ; 1, 2, 3, 5 (kg) |
| Material | Aluminum Alloy |
| Dimension | 52*6*10mm (0.5kg) |
| 52*9*10mm (1-5kg) | |
| Rated Output | 0.8±0.15 mV/V ; 1.0 mV/V |
| Protection Class | IP65 |
| Cable | Φ0.8 × 0.3m |
Key Features:
Aluminum alloy material
Capacity: 0.5-5kg
Precision: 0.03%R.O.
Protection class: IP65
Rated Output: 0.8-1.0 mV/V
Usage & Applications:
Jewelry scale
Dimension:
Specification:
| Rated Capacities | 0.5kg; 1,2,3,5 (kg) |
| Rated Output | 0.8±0.15 mV/V 1.0 mV/V |
| Zero Balance | ±0.1mV/V |
| Non-linearity | 0.03 %R.O. |
| Hysteresis | 0.03 %R.O. |
| Repeatability | 0.03 %R.O. |
| 30mins Creep | 0.03 %R.O. |
| 30mins Return | 0.03 %R.O. |
| Safe Overload | 150 %R.O. |
| Ultimate Overload | 200 %R.O. |
| Temperature Effect On Output | 0.01%R.O./℃ |
| Temperature Effect On Zero | 0.05 %R.O./℃ |
| Input Impedance | 1115±10% Ω |
| Output Impedance | 1000±10% Ω |
| Insulation Impedance | ≥2000 MΩ/(50VDC) |
| Recommended Excitation | 5~12 VDC |
| Maximum Excitation | 15 VDC |
| OperatingTemperatureRange | -20~60 ℃ |
| Construction | Aluminum Alloy |
| Protection Class | IP65 |
| Cable | Φ0.8×0.3m |
| Recommended Platform Size | |
| Mode of Connection | Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-) |
