| 起源の場所: | 中国 |
| ブランド名: | RUIJIA |
| 証明: | CE |
| モデル番号: | RJ |

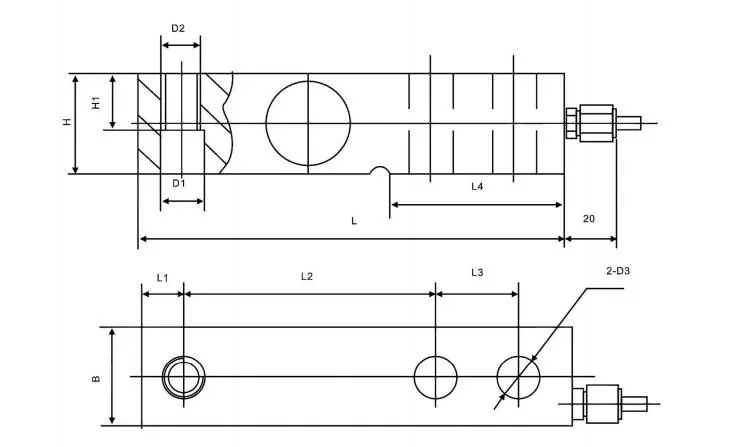

Product size drawing
| capacity | L | L1 | L2 | L3 | L4 | H/B | H1 | D | D2 | D3 |
| 0.5T~3T | 130 | 12.7 | 76.2 | 25.4 | 57 | 31.8 | 15.9 | Φ18 | M16*1.75 | Φ18 |
| 3T~5T | 171.5 | 19 | 95.3 | 38.1 | 72.5 | 38.1 | 26 | Φ20 | M20*1.5 | Φ20 |
| 7.5T~10T | 222.5 | 25.3 | 124 | 50.8 | 10.2 | 50.8 | 25.4 | Φ27 | M24*2 | Φ27 |
Product parameter list
| capacity | T | 0.5~10T |
| Rated Output | mv/v | 2.0/3.0±0.2 |
| Non-linearity | %F.S | 0.03 |
| Hysteresis | %F.S | 0.03 |
| Repeatability | %F.S | 0.03 |
| Creep | %F.S/3min | 0.03 |
| Temp.effect on zero | %F.S/10ºC | 0.03 |
| Temp.effect on span | %F.S/10ºC | 0.03 |
| Zero balance | mv/v | ±0.03 |
| Input impedance | Ω | 380±20 |
| Output impedance | Ω | 352±5 |
| Insulation resistance | MΩ | ≥5000(100VDC) |
| Recommended excitation voltage | VDC | 5~12 |
| Allowed excitation voltage | VDC | 5~15 |
| Compensated temp.Range | ºC | -10ºC~+40ºC |
| Operating temp.Range | ºC | -20ºC~+60ºC |
| Safe overload | %F.S | 120 |
| Ultimate Overload | %F.S | 150 |
| Connection | Excitation: Red:+ Black:- | |
| Signal: Green:+ White:- | ||
