| 起源の場所: | 中国 |
| ブランド名: | RUIJIA |
| 証明: | CE |
| モデル番号: | RJ |

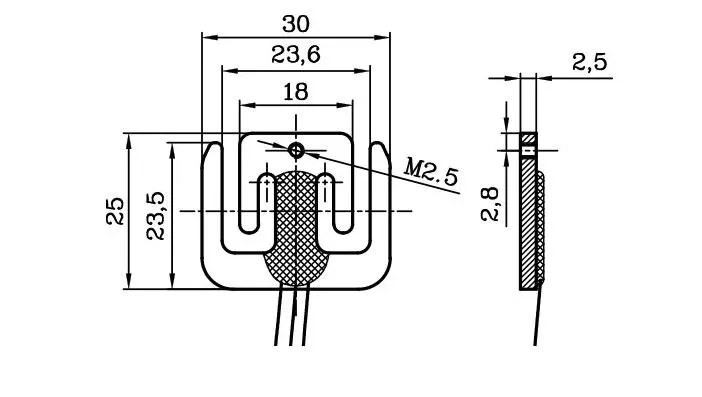

Product size drawing
Product parameter list
| capacity | Kg | 50Kg |
| Rated Output | mv/v | 1.0±0.2 |
| Non-linearity | %F.S | 0.3 |
| Hysteresis | %F.S | 0.3 |
| Repeatability | %F.S | 0.3 |
| Creep | %F.S/3min | 0.3 |
| Temp.effect on zero | %F.S/10ºC | 0.3 |
| Temp.effect on span | %F.S/10ºC | 0.3 |
| Zero balance | mv/v | ±0.2 |
| Input impedance | Ω | 1000±10 |
| Output impedance | Ω | 1000±5 |
| Insulation resistance | MΩ | ≥2000(100VDC) |
| Recommended excitation voltage | VDC | 3~12 |
| Allowed excitation voltage | VDC | 5~15 |
| Compensated temp.Range | ºC | -10ºC~+40ºC |
| Operating temp.Range | ºC | -20ºC~+60ºC |
| Safe overload | %F.S | 120 |
| Ultimate Overload | %F.S | 150 |
| Connection | Excitation: White:E+ Black:E- | |
| Signal: Red:S+ | ||
Company Information
Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
