| 起源の場所: | 中国 |
| ブランド名: | RUIJIA |
| 証明: | CE |
| モデル番号: | RJ |

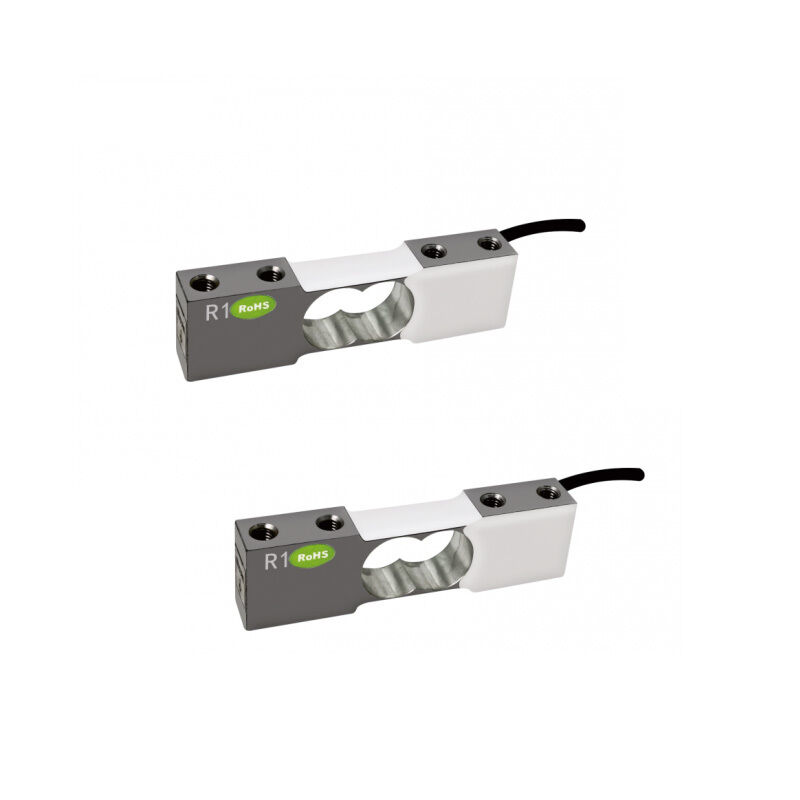

Low Capacity OIML Approval Single Point Load Cell NA96
The load cell is aluminium alloy strain gauge load cell,high precision and solid structure can apply for a lot of measurement.The single point weight sensor is suitable for kitchen scale,portable scale.etc.
Key Feature:
Aluminium alloy
Capacity: 1~30kg
Precision: 0.03%R.O.
Protection class: IP66/67
Rated Output : 2.0mV/V±10%
Usage & Application:
Mainly used in kitchen scale,portable scale.
Dimension:
Specification:
| Rated Capacities | 1~30kg |
| Rated Output | 2.0 mV/V±10% |
| Zero Balance | ±0.1000mV/V |
| Non-linearity | 0.03 %R.O. |
| Hysteresis | 0.03 %R.O. |
| Repeatability | 0.03 %R.O. |
| 30mins Creep | 0.03 %R.O. |
| 30mins Return | 0.03 %R.O. |
| Safe Overload | 150 %R.O. |
| Ultimate Overload | 200 %R.O. |
| Temperature Effect On Output | 0.01%R.O./℃ |
| Temperature Effect On Zero | 0.05 %R.O./℃ |
| Input Impedance | 1115±10 %Ω |
| Output Impedance | 1000±10 %Ω |
| Insulation Impedance | ≥2000MΩ/(50VDC) |
| Recommended Excitation | 5~12 VDC |
| Maximum Excitation | 15 VDC |
| OperatingTemperatureRange | -20~60 ℃ |
| Construction | Aluminum Alloy |
| Protection Class | IP666/67 |
| Cable | Φ3×0.3m |
| Recommended Platform Size | |
| Mode of Connection | Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-) |
