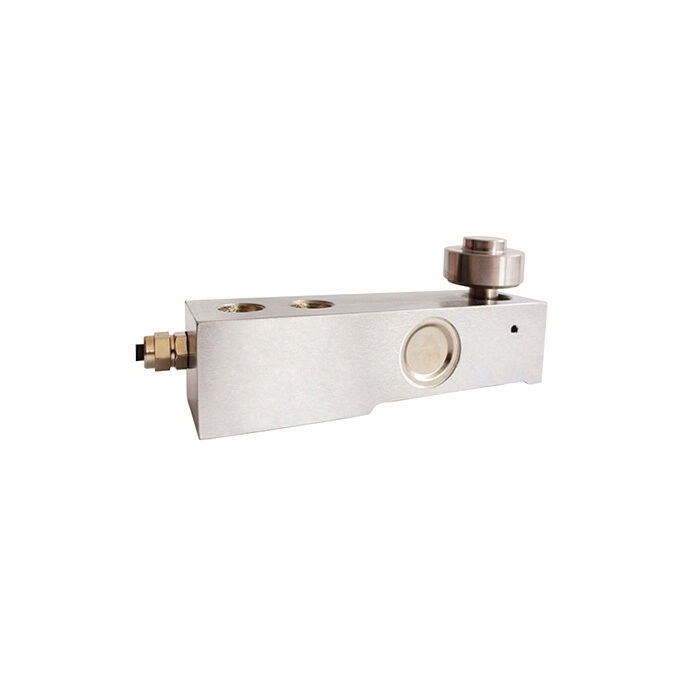

Cantilever Beam Load Cell, 500kg/1000kg/2 ton/3 ton/5 ton

Cantilever Beam Load Cell, 500kg/1000kg/2 ton/3 ton/5 ton

After purchasing one RJ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Cheap cantilever beam load cells have capacity range from 500kg/1000kg/2 ton/3 ton to 5 ton. Capacity of Load cell can be customized according to customer's requirements.

Specification


Feature

• High Precision & Sensitivity: Offers high detection precision and excellent sensitivity, ensuring reliable force measurements.
• Durable Construction: Made from 42CrMo alloy steel, known for its high strength and wear resistance, ensuring long-term durability.
• Stable Performance: Designed for long-term stability with strong resistance to bias load, suitable for accurate weighing and measurement.
• Waterproof & Reliable Signal: Features a 6-point waterproof connector, preventing wire pull-out and ensuring stable signal transmission.
• Wide Application: Ideal for platform scales, hopper scales, tank scales, and various other industrial weighing systems with high stability and precision.

Wiring Diagram

Dimensional Drawing

Application

<img alt="" data-cke-saved-src=" <p style=" src=" <p style=" --un-rotate:="" 0;="" --un-rotate-x:="" --un-rotate-y:="" --un-rotate-z:="" --un-scale-x:="" 1;="" --un-scale-y:="" --un-scale-z:="" --un-skew-x:="" --un-skew-y:="" --un-translate-x:="" --un-translate-y:="" --un-translate-z:="" --un-pan-x:="" ;="" --un-pan-y:="" --un-pinch-zoom:="" --un-scroll-snap-strictness:="" proximity;="" --un-ordinal:="" --un-slashed-zero:="" --un-numeric-figure:="" --un-numeric-spacing:="" --un-numeric-fraction:="" --un-border-spacing-x:="" --un-border-spacing-y:="" --un-ring-offset-shadow:="" 0="" rgb(0="" 0);="" --un-ring-shadow:="" --un-shadow-inset:="" --un-shadow:="" --un-ring-inset:="" --un-ring-offset-width:="" 0px;="" --un-ring-offset-color:="" #fff;="" --un-ring-width:="" --un-ring-color:="" rgb(147="" 197="" 253="" .5);="" --un-blur:="" --un-brightness:="" --un-contrast:="" --un-drop-shadow:="" --un-grayscale:="" --un-hue-rotate:="" --un-invert:="" --un-saturate:="" --un-sepia:="" --un-backdrop-blur:="" --un-backdrop-brightness:="" --un-backdrop-contrast:="" --un-backdrop-grayscale:="" --un-backdrop-hue-rotate:="" --un-backdrop-invert:="" --un-backdrop-opacity:="" --un-backdrop-saturate:="" --un-backdrop-sepia:="" margin-top:="" 10px;="" margin-bottom:="" outline:="" none;="" padding:="" box-sizing:="" border-box;="" line-height:="" 30px;="" color:="" rgb(85,="" 85,="" 85);="" font-family:="" &quot;open="" sans&quot;,="" sans-serif;"="">Tips: How do I know if my Cantilever Beam Load Cell is working properly?

To check if your load cell is functioning correctly:

• Verify output signal: Ensure the output signal is within the expected range for the applied load.
• Perform calibration: Test the accuracy using known reference weights or forces.
• Check for physical damage: Inspect for cracks, corrosion, or other signs of wear.
• Monitor performance over time: Track consistency and make adjustments if readings become erratic.
