| 起源の場所: | 中国 |
| ブランド名: | RUIJIA |
| 証明: | CE |
| モデル番号: | RJ |
Features:

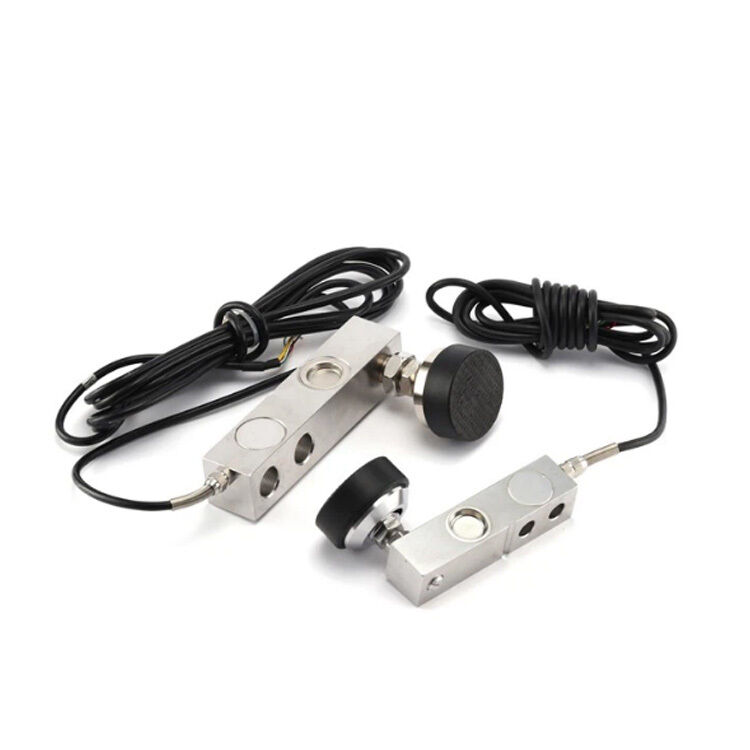

Single Shear Beam Load Cell, Capacity range from 100kg to 10,000kg
Material: Alloy Steel or Stainless Steel, High quality, high accuracy OIML standard, low costs,
Laser Sealed, Water Proof to IP68, Anti corrosion.
APPLICATIONS: Floor scales, platform scales, weigh bridge,hand pallet truck and other weighing devices.
Dimensions:(mm)
| Capacity | L | L1 | L2 | L3 | L4 | d | B | M |
| 1~4(klb) 0.5~2(t) 5KSE |
130 | 56.5 | 15.8 | 25.4 | 76.2 | 13.5 | 31.8 | M16X2 M12X1.75 1/2-20UNF |
| 5~10(klb) 2.5~5(t) | 171.5 | 77.2 | 19.1 | 38.1 | 95.3 | 20 | 38.1 | M18X1.5 3/4-16UNF |
| 20(klb) 10(t) | 222.3 | 101.6 | 25.4 | 50.8 | 120.7 | 26.2 | 50.8 | M24x2 1-12 UNF |
| SPECIFICATION: | |||
| Precision: | C3 | ||
| Combined Error: | ±0.02 | ||
| Rated Output: | 2mv / 3mv/v±0.003 | ||
| Creep(%F.S/30min): | ±0.02 | ||
| Non-linearity(%F.S) | ±0.02 | ||
| Hysteresis:(%F.S) | ±0.02 | ||
| Zero balance(%F.S): | ±1.0 | ||
| Input resistance: | 350±5 | ||
| Output resistance: | 350±5 | ||
| Insulation resistance: | ≥5000(100VDC) | ||
| Temp. effect on span(%F.S/10℃): | ±0.017 | ||
| Temp. effect on zero(%F.S/10℃): | ±0.02 | ||
| Use temp. range(℃): | -20～+55 | ||
| Excitation voltage(V): | 9～12(DC) | ||
| Safety overload (%F.S) | 150% | ||
| Ultimate overload (%F.S) | 200% | ||
| Defend grade | IP68 | ||
| Cable Length: | 3 meters -10 meters | ||
| Wire Connection Method | |||
| RED=EXC+ | BLACK=EXC- | GREEN=Signal+ | WHITE=Signal- |
